Over the last few months, my friends over at BIMsmith have been running a “Holiday Revit Family” contest.

I decided to enter the contest with something that I was seeing more and more of towards the end of December, a storage tote.


Today marks the day they announce the semi-finalists. This means I can just give it away to you all now!

But before that, a little about the tote.

The “body” of the tote is achieved using a swept blend with a really thin profile. This allows us to build that iconic outer profile of these crazy plastic bins. 01_Body.png

Tote Body

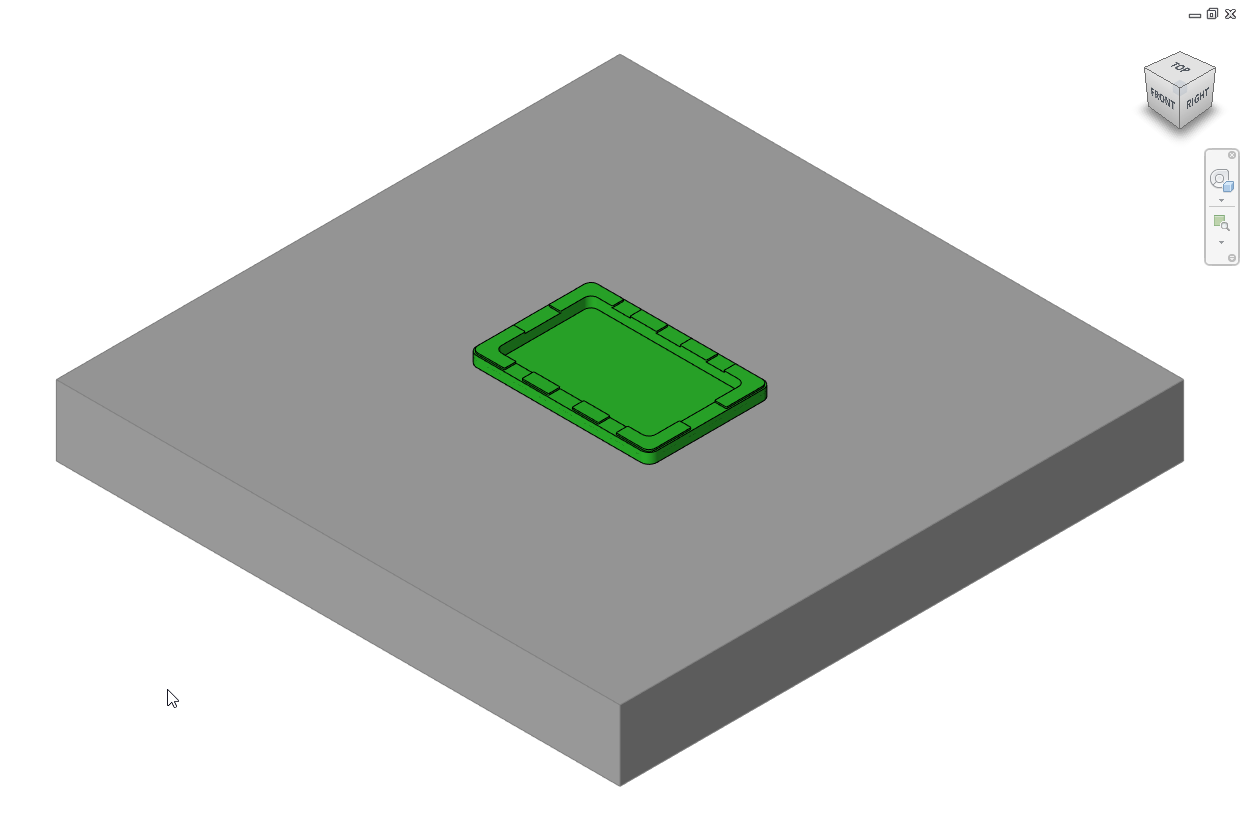

The lid is a face-based family that is parametric as well. This allows it to close this bin. More on why it is face based in a moment. 02_Lid.png

Tote Lid

Within the main tote family, we have a sweep that is hosted on a model line. We can call this, the “hinge”. This is not geometry that we show in the end result, but it is useful. 03_Hinge.png

Tote Hinge

The reason this hinge is important is that in Revit, a sweep family has a pretty awesome non-breakable angle parameter. 04_Hinge.png

Tote Hinge Parameter

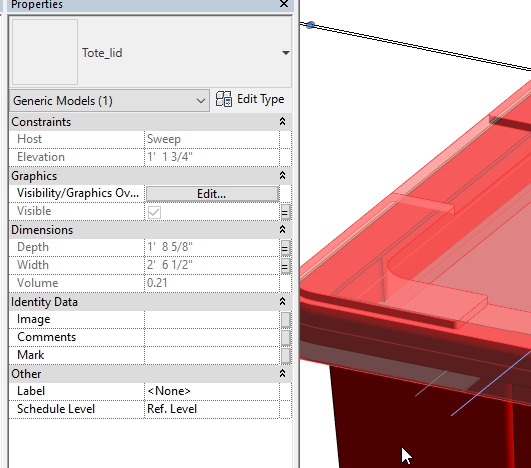

By utilizing that parameter and a flat, “host” surface, we get an ideal scenario to host a face based family to follow, (the lid in this case). 05_HostedLid.png

Hosted Tote Lid

With that stuff worked out, our tote would: 1. be parametric for WxDxH. 2. Have a lid that opens and closes.

But why stop there? If we give people the chance to open and close it, why not give it a 3d grip handle?

If you haven’t heard of 3d grip handles, I encourage you to check out my AU class on it here. We cover awesome ways to make your families flex and stretch in Revit.

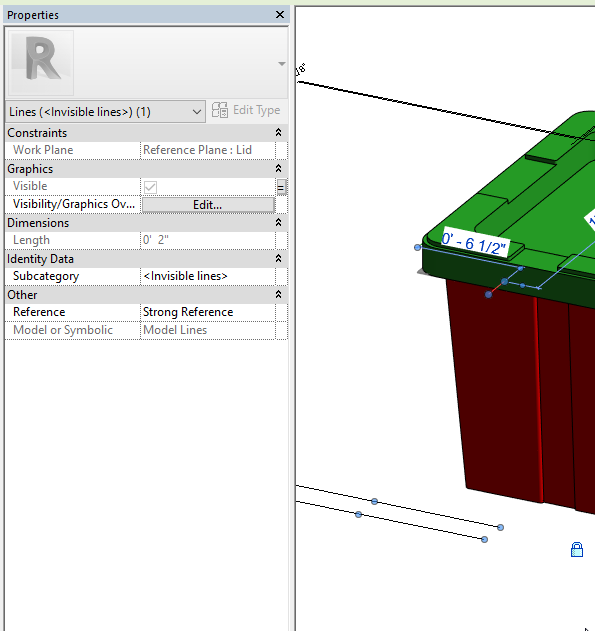

In order to achieve a 3d grip handle, we simply add a model line (invisible subcategory) and make it a “Strong Reference”. 06_3dGrip.png

3d Grip Handle

And here is the tote in all of its parametric glory ChristmasToteOpen2.gif

In action

I know what some of you may be thinking: “Why the heck would you waste time modeling something like this? No wonder they didn’t pick it as a semi-finalist.”

My response to that is, “Why not?” By embracing the odd, we are able to explore some really neat Revit tricks and now you have this family to deconstruct and apply to whatever you may need.

Download for the Super Awesome Christmas Storage Tote Family (Revit 2018)

To download the family, simply click on this duck.

🦆
